Overview

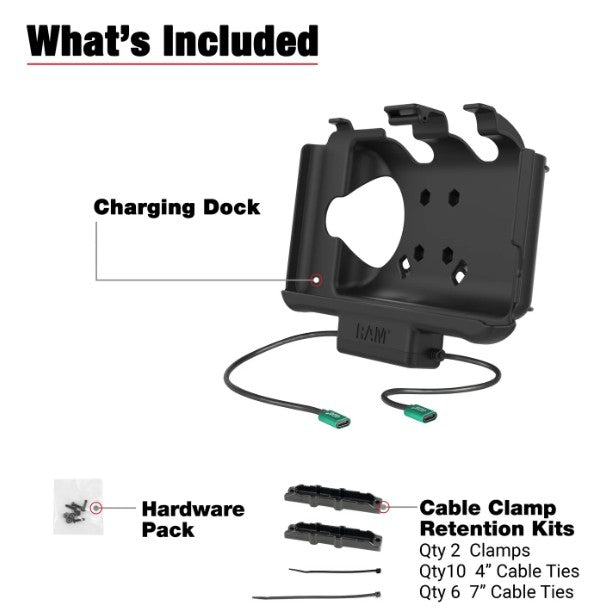

The RAM® USB-C Powered Dock + USB-C Data for Samsung Tab Active5 & Tab Active3 (RAM-HOL-SAM60CP-CU) was thoughtfully designed to meet the demands of commercial truck drivers, field service technicians, pupil transporters, logistics managers, forklift operators, and more. Power and data sync capabilities are provided to the device through GDS® pogo pins while taking advantage of this cradle's USB Type-C port to support one additional peripheral, making this the ideal, compact mounting solution for your mobile workstation. This modular dock is compatible with the RAM® Skin™, factory device skin, and GDS® Hand-Stand™. Access to the stylus remains while the device is docked. Included is a set of four nuts and bolts to connect the dock to any RAM® components containing the universal AMPS hole pattern along with cable clamps and zip ties for cable retention.
Product features
Product features
RAM® EZ-Roll'r™ form-fit powered dock designed specifically for the Samsung Galaxy Tab Active5 & Tab Active3; provides charging through an integrated pogo pin connection and USB-C cable
Compatible with the Samsung OEM skin as well as the RAM® Skin™; built-in cavity in the back allows for GDS® Hand-Stand™ compatibility
Access to speakers, mics, and headphone jack remain while device is docked; allows access to the GDS® shoulder strap loops on RAM® Skin™
Materials and care
Materials and care
Hole Pattern: 4-Hole AMPS: 1.181" x 1.496"
Materials: High strength composite
Packaging Type: Poly Bag
Input Voltage: 5.3-5.4VDC
Output Voltage: 5VDC
Power Output: 500mA
Input Connector: USB Type-C Female
Input Cable Length: 215mm
Merchandising tips
Merchandising tips
This product will not support the "No Battery Mode" function of the Tab Active3. To support "No Battery Mode"
